Products > Safes > Safes EN 1143-1 > Class 1 – BSA I Series
EN_1143-1 Class1 Safe
EN_1143-1 Class1 Safe Scheme
click for larger view
Safes EN 1143-1
Class 1 – BSA I Series

  • The BSA I safes series, are manufactured in accordance to the European standard EN 1143- 1 class 1.

  • The closing mechanism has a three way direction system, and the locking is done with one lock, EN 1300 A or EN 1300 B (high security key lock, with mechanical combination lock or electronic lock).

  • The shelves can be vertically adjusted on every 12.5 mm.

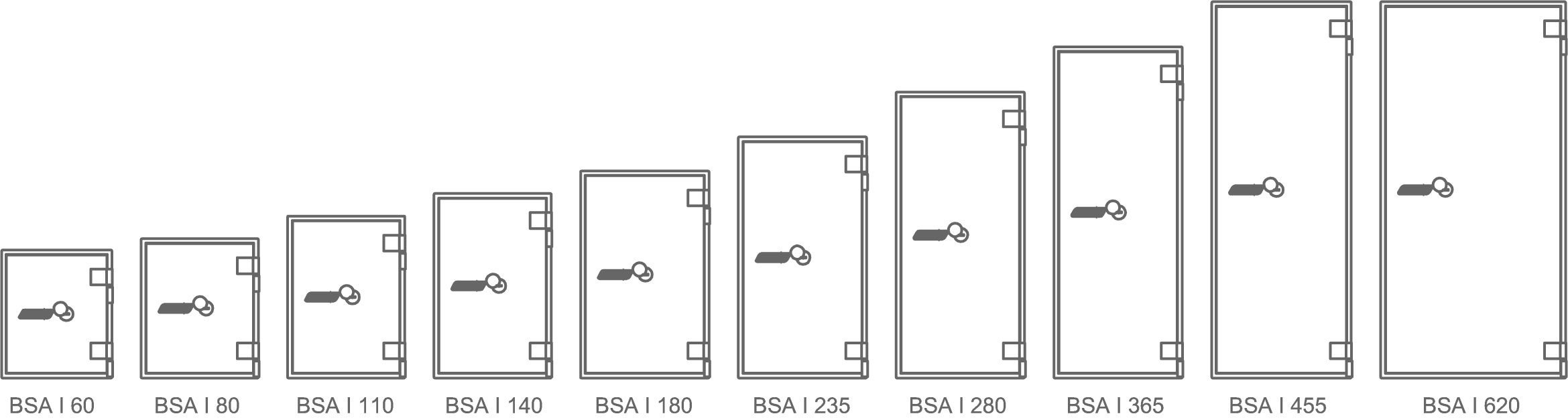

EN_1143-1 Class1 Safe Sketches
Model Dimensions (mm) Weight (kg) Volume (dm³)
A B *C A1 B1 C1 Db Dc
BSA I 60 568 488 428 508 428 278 940 900 159 60
BSA I 80 618 518 458 558 458 308 1000 960 185 79
BSA I 110 718 518 508 658 458 358 1000 1010 218 108
BSA I 140 818 518 558 758 458 408 1000 1060 257 142
BSA I 180 918 568 558 858 508 408 1100 1110 299 178
BSA I 235 1068 568 608 1008 508 458 1100 1160 357 235
BSA I 280 1268 568 608 1208 508 458 1100 1160 412 281
BSA I 365 1468 568 658 1408 508 508 1100 1210 488 363
BSA I 455 1668 618 658 1608 558 508 1200 1260 576 456
BSA I 620 1668 818 658 1608 758 508 1600 1460 690 619
* ) + 50 mm (for handles, hinges, different entry or dial rings...)
